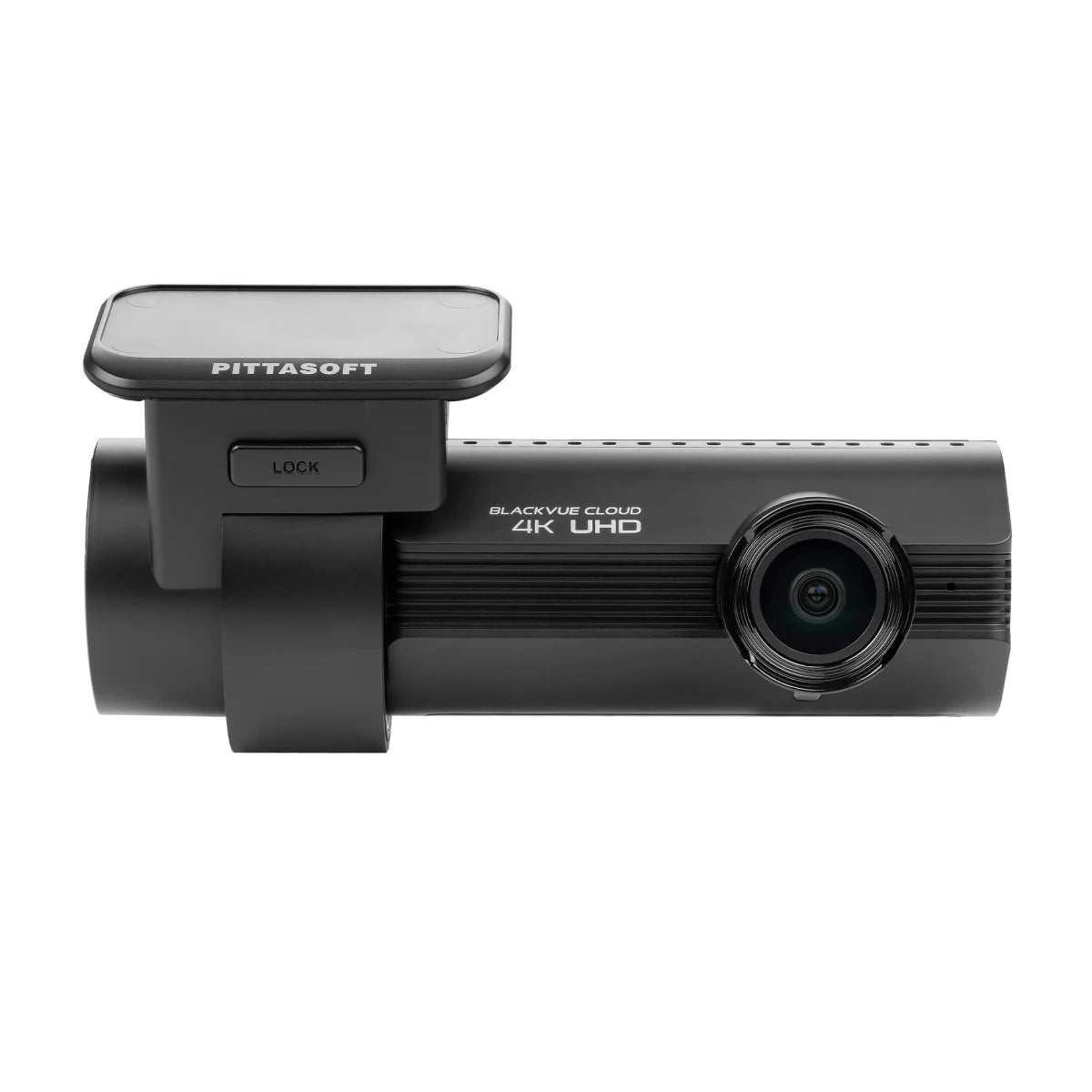

Model Name DR970X-1CH Plus
Channel
1CH

Highlights
4K UHD, 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)

Product Dimensions
Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g

Memory Support
microSD card up to 512GB

Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode
YES (hardwiring cable included)

Parking Mode Event Voice Notifications
YES

Imaging Sensor
STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel)

Viewing Angle
Diagonal 146°, Horizonal 125°, Vertical 68°

Resolution Frame Rate
4K (3840 x 2160) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.

Video Codec
H.265 (HEVC) / H.264 (AVC)

Image Quality and Bitrate Front/Rear
Highest (Extreme): 60 Mbps
Highest: 25 Mbps
High: 12 Mbps
Normal: 8 Mbps

Format Free
YES (Adaptive)

Event File Overwrite Protection
YES (up to 50)

SD Card Failure Alert
YES

Scheduled Reboot
YES

Video File Extension
MP4

Wi-Fi
Built-in (802.11 a.b.g.n.ac)

Cloud Compatible
YES

GPS
Built-in (Dual Band : GPS, GLONASS)

Microphone
Built-in

Speaker
Built-in

Impact Sensor
3-Axis Acceleration Sensor

LED Indicators
Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED

Button
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Operation Temperature
-20 °C − 70 °C (-4 °F − 158 °F)

Storage Temperature
-20 °C − 80 °C (-4 °F − 176 °F )

High Temp Cut Off
Approx. 75 °C (167 °F)

Backup Battery
Built-in supercapacitor

Input Power
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour
Normal Mode (GPS On/1CH): Avg. 340mA /12V
Parking Mode (GPS Off/1CH): Avg. 260mA /12V
* Actual power consumption may vary depending on use conditions and environment.

Certifications
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC

Software
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher

Application
BlackVue Application

* Android 8.0 or higher, iOS 13.0 or higher

Others
Adaptive Format-Free File Management System

Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (Optional)

Front Camera
Quick start guide
Cable clips (5EA)
microSD card
Spare mount sticky pads
Hardwiring power cable
Cigarette lighter power adapter
Pry tool
